Zebra iMZ Series Mobile Printer Specification

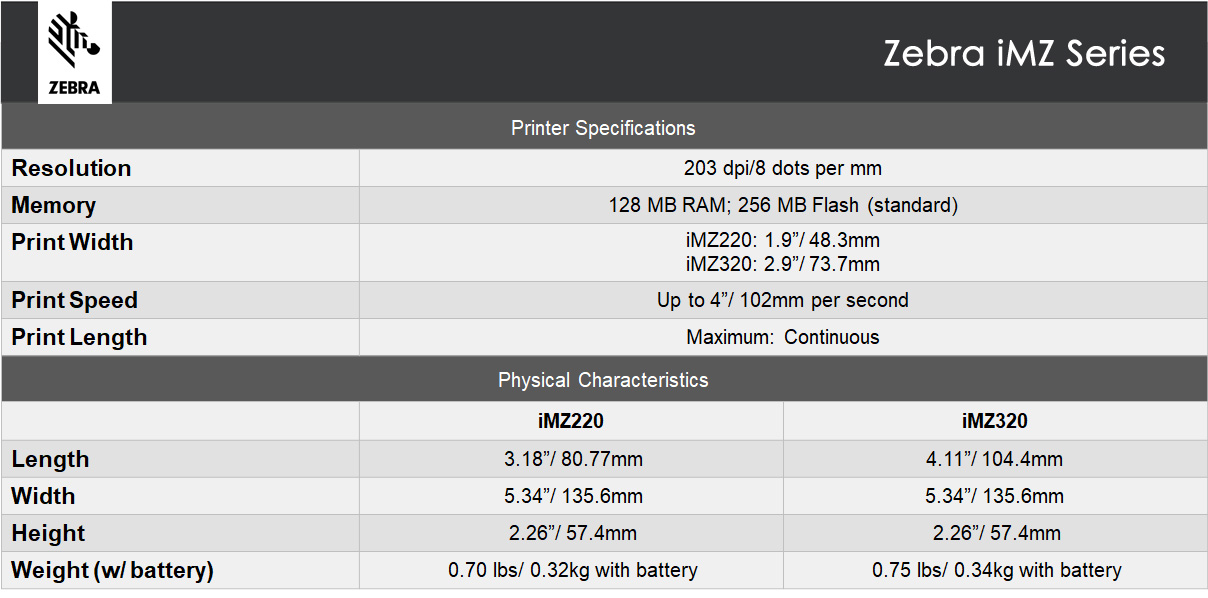

Zebra iMZ Series Specification

Zebra iMZ Series Mobile Printer Features
  • Direct thermal printing of barcodes, text and graphics

  • 203 dpi/8 dots per mm resolution

  • Print speed: Up to 4”/ 102mm per second

  • CPCL and ZPL® programming languages

  • Resident fixed and scalable fonts
  • 400MHz 32-bit ARM® processor with 128 MB RAM memory

  • 128 MB Flash memory supports downloadable programs, receipt formats, fonts, and graphics

  • USB port

  • 1.6Ahr Li-Ion battery

  • Built-in battery charger

  • Optical out-of-media sensing using fixed center-position sensor

  • Tear bar for easy receipt dispensing

  • Supports vertical and horizontal printing

  • Printer can be used in any orientation

  • Fixed media-roll width

  • Clamshell design for easy media loading

  • Printer Management: Mirror, SNMP, Web server (with customizable HTML pages), Wavelink
         Avalanche® [Future firmware update]

  • Four LEDs as user interface indicators


  • 4’/ 1.2m drop to concrete (multiple times)

  • Label odometer

  • Bluetooth 2.1

  • Security modes 1–4

  • Bluetooth printing from Apple devices (iOS5, iOS6)
  • IP42-rated for dust and water resistance (IP54 with durability-enhancing case)

  • Print Touch via NFC–One touch to pair and print via Bluetooth
