KanexPro 4x4 HDMI 2.0 Matrix Switcher Features

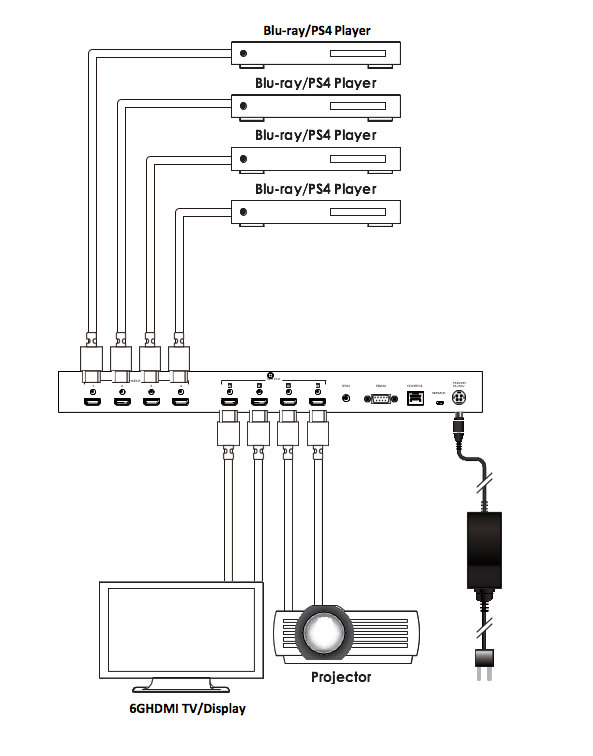

Cross-switch 4 HDMI devices to 4 HDMI displays in 4K@60Hz
Distribute 4Kx2K@60Hz signal up to 10m over HDMI (max.)
4K & UHDTV resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit)
True4K @ 4096x2160@60Hz (YUV 4:4:4,8-bit)
Supports Dolby Vision & HDR pass-thru
Supports 48-bit Deep Color up to 1080p/60
Supports LPCM 7.1 pass-thru bit stream
HD bit stream audio formats over HDMI
HDCP 1.4 & 2.2 Compliant
Powerful EDID management tools with 4 slots for user-created EDIDs, and EDID bypass
Control via front-panel buttons, IR, RS-232 & Web based GUI
Front-panel LED's provides real-time I/O connection status
Firmware upgrade via micro USB port
Locking HDMI connector screws
Universal RS-232 code compatible with any 3rd party control systems
Internal Universal power for worldwide compatibility
Backed by KanexPro 3 Year parts & labor warranty
Applications:
Perfect for whole house distribution systems and house of worship centers as well as corporate boardrooms where swift, reliable switching and distribution of 4K/60 HDMI signals are critical to meet pixel-by-pixel needs with HDR.
|
|
