Overview | Features

KanexPro HDMI® 150m Extender over HDBaseT™ Features



  • Compact 150m HDMI extender over CAT6

  • Extends up to 492ft. (150m) with full HD 1080p/60

  • Local HDMI loop out on Tx (sender)

  • Bi-directional PoE (Power over Ethernet)

  • HDCP 1.4 & EDID compliant

  • IR input/output - embedded over CATx extension

  • Dolby TrueHD & DTS Master Audio support

  • Supports uncompressed audio - LPCM

  • Bi-directional RS-232 & IR control

  • One locking power supply included


  • Please Note:
    use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

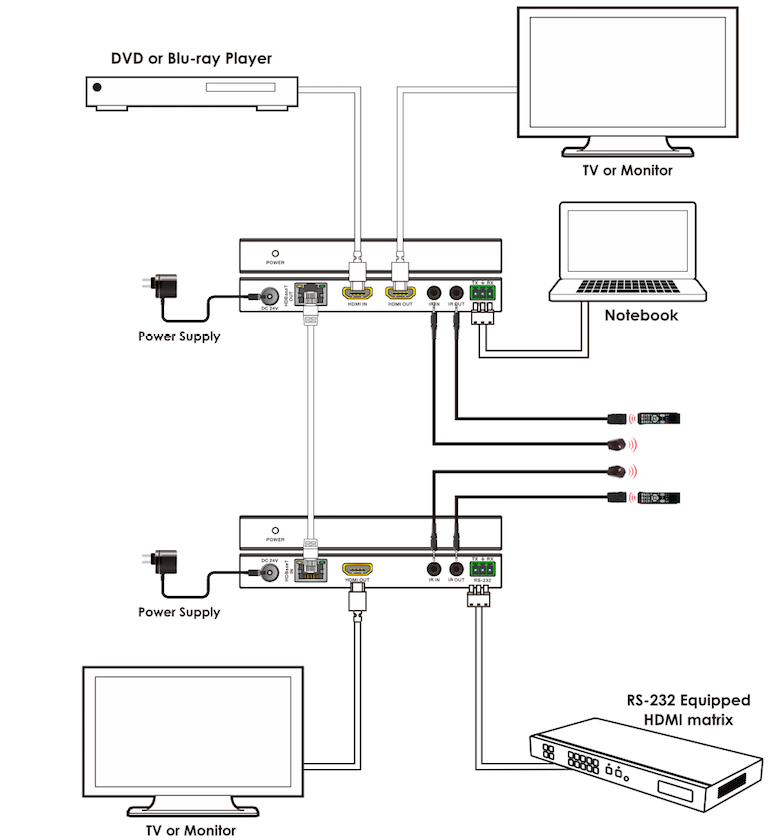

    Applications
    As mentioned above, this extender can be used in any environment where there is a need to extend high-resolution HDMI signals up to 492 ft. (150m) from an HDMI device like a computer to a remote display located far away.
