Overview | Features

KanexPro UltraSlim 4K/60 HDMI® 2.0 Extender over HDBaseT™ up to 330ft & PoH Features



  • Ultra Slim 230ft. (70m) HDMI extender over HDBaseT w/ PoH

  • Extend up to 70m for 4K/60 video w/ 4:4:4 Chroma

  • HDR (high dynamic range) & wider color gamut support

  • Supports Ultra HD 4K@60Hz resolutions

  • Video resolutions from 1080p/60@48bit

  • 18 Gbps bandwidth

  • Bi-directional PoH (power over HDBaseT)

  • HDCP 2.2 and EDID compliant

  • CEC Pass-thru

  • IR input/output - embedded over CATx extension

  • Dolby TrueHD & DTS Master Audio ready

  • Supports uncompressed audio - LPCM

  • Bi-directional RS-232 & IR control

  • Ultra Slim enclosure w/ separate mounting ears

  • One locking power supply included

  • Backed by KanexPro 3-year parts and labor warranty


  • Please Note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

    Applications

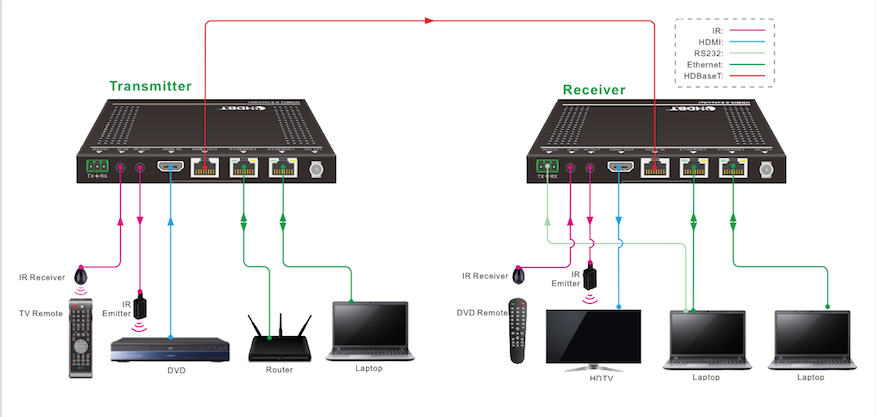

    Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater where uncompressed HDMI, control, power over ethernet and LAN serving can be remotely extended up to 330ft. (100m).
